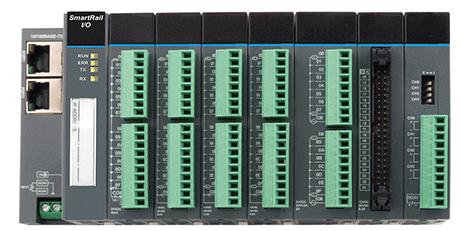

The SmartRail I/O System is Horner’s newest I/O offering. SmartRail is compact – but highly expandable and scalable. Start with an Ethernet Base with a built-in two port switch. Continue by adding I/O modules of your choice that easily snap together. Each base can hold up to 8 I/O modules, for a total of up to 256 digital and 32 analog points. Now just daisy-chain as many additional bases that are needed to complete the application – up to a total of 2048 digital and 512 analog I/O. Software configuration is a snap as well – just plug-and-play using Cscape 9.1. (Cscape 9.1 to be released at the end of March.)

Digital I/O is available in 8, 16, and 32 point modules – with DC (in and out) and Relay options. For the 32 point modules – SmartLink Wiring Accessories make the multitude of terminations neat and compact. Analog I/O selection is extensive – with modules for 0-10V, 4-20mA, Thermocouples, and RTDs. These are offered as 4 channel Input only, Input/Output, and Output only models.

When it comes to network connectivity – SmartRail is flexible. The SmartRail Ethernet I/O Base is one of three offerings, along with CsCAN (summer 2010) and Profibus DP. This allows it to work great with OCS, or even with third party controllers.

Part Number	Description
	SmartRail Bases
HE599ETX200	Ethernet Base. Compatible with XL6e, NX221/251, QX, RX, RCX. Features built-in unmanaged switch. Supports up to 8 I/O modules drawing up to 1.5A @ 5Vdc. Supports up to 256 digital and 32 analog I/O per base. Requires Cscape 9.1, and Firmware 12.70.
HE599CNX100	CsCAN Base. Compatible with XLe, XLt, XL6, XL6m, XL6e, NX, QX, RX, RCX. Projected Availability Summer 2010.
HE599PBX100	Profibus Base. Requires a Profibus Master, such as the SmartStack PBM650 module. Supports up to 8 I/O modules drawing up to 1.5A @ 5Vdc. Supports up to 256 digital and 16 analog I/O per base.

	SmartRail Ethernet cables
HE599CBEnnn (nnn=length)	Available in 1, 2, 3, 6, 10, 15, 30 & 50 foot lengths (ie HE599CBE001 = 1 foot cable)

	Digital Input Modules
HE599DIM510	8 DC Inputs (24vdc pos/neg logic).
HE599DIM610	16 DC Inputs (24vdc pos/neg logic).
HE599DIM710	32 DC Inputs (24vdc pos/neg logic). SmartLink Expansion Cable and Terminal Strip recommended.

	Digital Input/Output Modules
HE599DIQ512	8 DC Inputs (12/24vdc, pos/neg logic). 8 Relay Outputs (2A).
	Digital Output Modules
HE599DQM506	8 DC Outputs (24vdc, pos logic, 0.2A)
HE599DQM606	16 DC Outputs (24vdc, pos logic, 0.2A)
HE599DQM706	32 DC Outputs (24vdc, pos logic, 0.2A). SmartLink Terminal Strip and Expansion Cable OR SmartLink Relay Output Strip and Expansion Cable recommended.
HE599DQM502	8 Relay Outputs (125Vdc or 250Vac), 2A.
HE599DQM602	16 Relay Outputs (125Vdc or 250Vac), 2A.

	Analog Input Modules
HE599ADC170	4 channel Analog Inputs, 12-bit. Selectable channel-by-channel for 0-20mA, 4-20mA, 0-10V.
HE599RTD100	4 channel RTD Inputs, 0.1°C. Supports Pt-100.
HE599THM100	4 channel Thermocouple Inputs, 0.1°C (typical). Supports J, K, T, R

	Analog Input/Output Modules
HE599MIX116	2 channel Analog Inputs + 2 channel Analog Outputs. 12-bit resolution, channel-by-channel selectable for 0-20mA, 4-20mA, 0-10V.

	Analog Output Modules
HE599DAC106	4 channel Analog Outputs, 12-bit. Supports 0-20mA, 4-20mA
HE599DAC101	4 channel Analog Outputs, 12-bit. Supports 0-10V.

	SmartLink Terminal Strips & Expansion Cables
HE599TRM040	40pin DIN-rail mounted Terminal Strip for 32 point I/O modules. Requires 40pin Expansion Cable
HE599CBL040	40pin Expansion Cable, 0.5m. Connects DIM706 or DQM706 to TRM040
HE599CBL240	40pin Expansion Cable, 2.0m. Connects DIM706 or DQM706 to TRM040

	SmartLink Relay Output & Expansion Cables
HE599RLY037	32pt DIN-rail mounted Socketed Relay Terminal Strip for 32 point DQM706 module. Requires Expansion Cable (below)
HE599CBL037	Expansion Cable, 0.5m. Connects DQM706 to RLY037
HE599CBL237	Expansion Cable, 2.0m. Connects DQM706 to RLY037

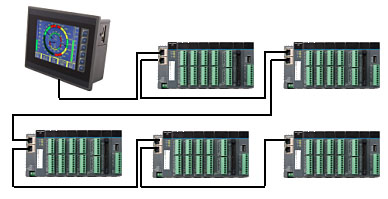

I/O Expansion Using Multiple Bases

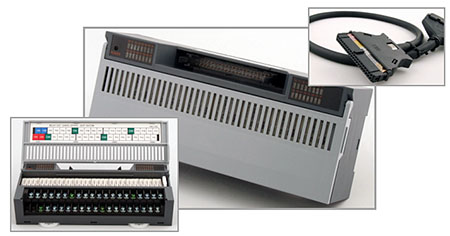

SmartLink Terminal Strip and Expansion Cable (for 32 point I/O)

SmartLink Relay Strip and Expansion Cable (for 32 point I/O)
